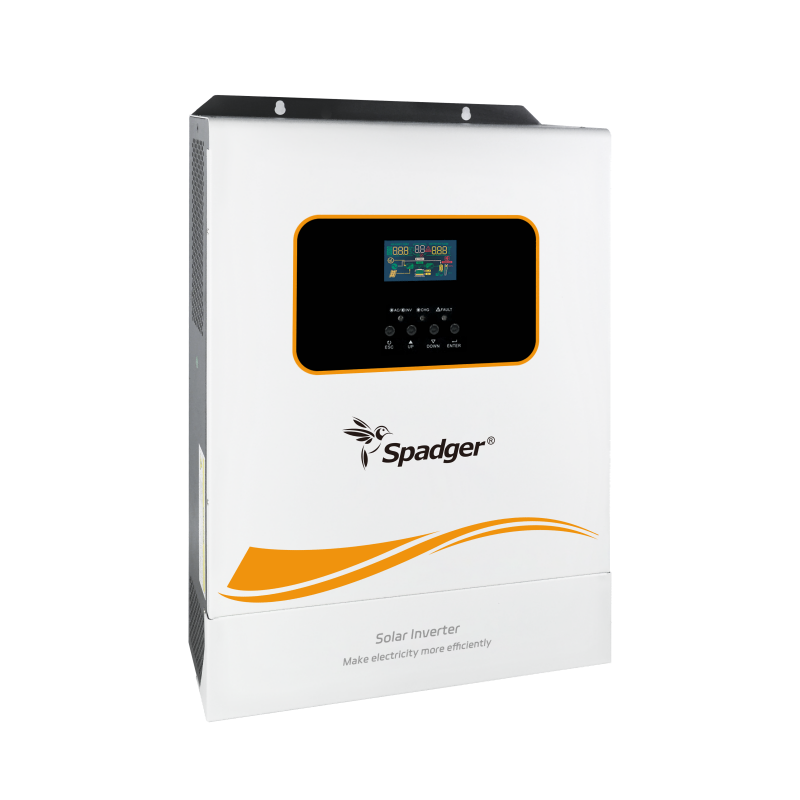

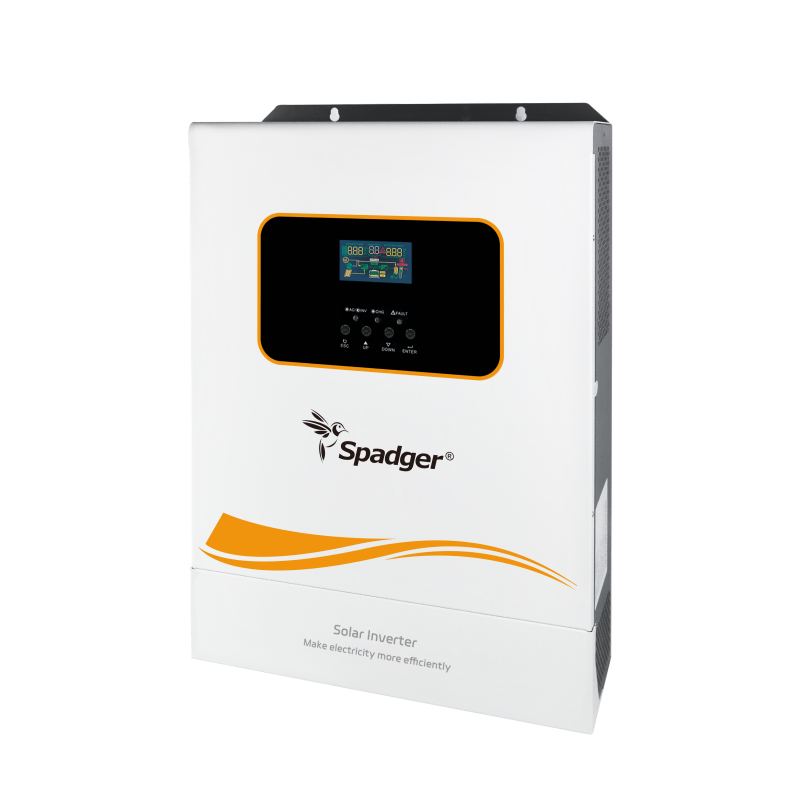

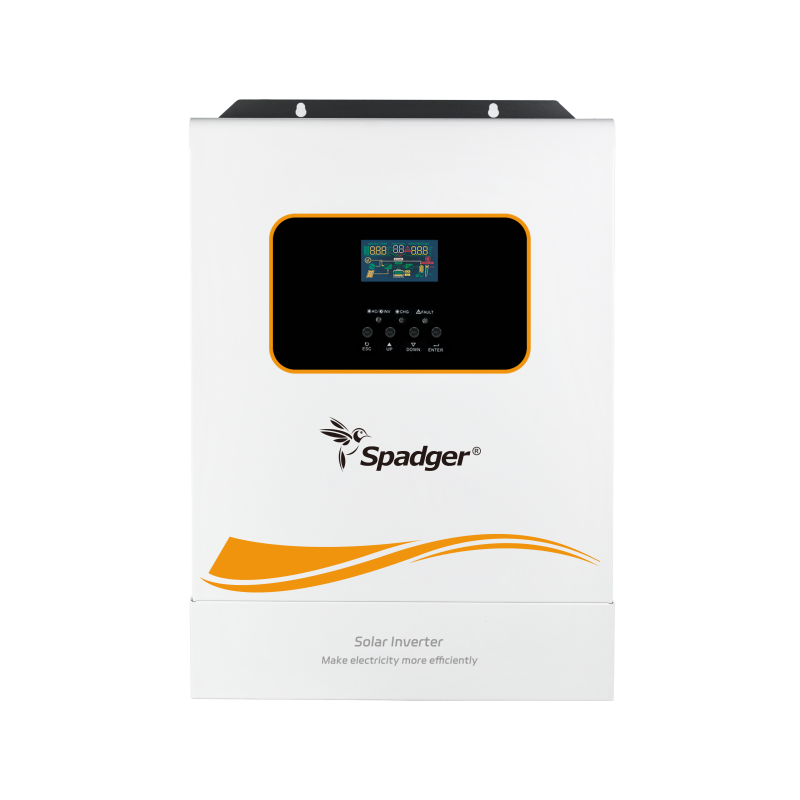

On Grid Solar Inverter with MPPT Solar Power Inverter 3.6kw
Our high-performance solar inverter covers a power range from 3.6KW to 12KW, catering to diverse residential and small commercial photovoltaic power generation needs. Equipped with 1 or 2 built-in MPPT trackers, the device achieves efficient solar energy harvesting and power conversion with high accuracy and stability. Adopting pure sine wave output technology, it delivers clean and stable power that fully protects household appliances and industrial equipment from voltage fluctuation damage, ensuring safe and reliable operation.
Featuring flexible operating modes, this inverter supports seamless compatibility with LiFePO4 batteries via RS485 communication for intelligent energy scheduling. It also works efficiently without battery connection, realizing direct solar power supply and reducing system configuration costs. Built-in WIFI function enables remote real-time monitoring of power generation data, operating status and parameter adjustment, bringing convenient intelligent management.The product supports multiple input priority modes including UTL, SOL, SBU and SUB, adapting to various power supply scenarios and user needs. Rigorous quality testing and field application have verified its superior durability and stable performance. Widely popular in Asia, Africa and Latin America markets, the inverter has earned high recognition and frequent repeat purchases from global customers, standing out as a trustworthy core device for solar power systems.
Main features 1.Lithium Battery Auto-restart function,more convenient for lithium battery charging 2.Intelligent power supply mode,intelligent distribution of solar panel /mains/battery power shares 3.Utility charging voltage /PV charging voltage adjustable, match different battery charging requirements 4.Convenient installation and transportation 5.Battery reverse connection protection with fuse switch,safer installation 6.PF1.0,High efficency,lower consumption,Energy consveration /Environmental protection/Electricity saving/cost saving 7.Support working without battery , reduce solar system cost 8.Parallel function up to maximum 9 units: enlarge more loads 9.Communication option,External Wifi ,Supervise at any time 10.BMS function for lithium battery |
|
Model | GA4024SMH | GA6248SMH | GA8648SMH | GA11048SMH | |
Input Formation | L+N+PE | ||||
AC Input | 220/230/240VAC | ||||
Input Voltage Range | 90-280VAC±3V(Normal Mode)185-264VAC±3V (UPS Mode) | ||||
Frequency | 50/60Hz(Adaptive) | ||||
Rated Power | 4000W | 6200W | 8600W | 11000W | |
Dual Output Power | 4000W/4500W | 6200W/6500W | 8600W/11000W | 11000W/12000W | |
Output Voltage(AC) | 220/230/240VAC±5% | ||||
Output Frequency | 50/60Hz±0.1% | ||||
Output Wave | Pure Sine Wave | ||||
Transfer Time(Adjustable) | 10ms for Computer Equipment,20ms for Household Equipment | ||||
Peak Power | 8000VA | 12400VA | 17200VA | 22000VA | |
Overload Ability | Battery Mode 21s@102%~110% load 10s@110%~130% load 3s@130%-150% load 400ms@>150% load | ||||
Grid connected Operation | Output Voltage | 220/230/240VAC | |||
Grid Voltage Range | 170-265VAC | ||||
Grid Frequency Range | 49-51±1Hz/59-61±1Hz | ||||
Output Current | 17.4A | 26.9A | 37.4A | 47.8A | |
Power Factor Range | >0.99 | ||||
Max efficiency (DC/AC) | >98% | ||||
Rated Voltage | 24VDC | 48VDC | |||
Constant Charging Voltage | 28.2VDC | 56.4Vdc | |||
Float Charging Voltage | 27VDC | 54VDC | |||
PV Charging Method | MPPT | 2*MPPT | |||
Max PV Input Power | 6500W | 8500W | 2*6500W | 2*7500W | |
PV Input Voltage Range | 60~500VDC | 60~500VDC | 90~500VDC | 90~500VDC | |
MAX PV Input Voltage | 500VDC | 500VDC | 500VDC | 500VDC | |
MAX PV Input Current | 27A | 27A | 27A/27A | 27A/27A | |
MAX PV Charge Current | 120A | 120A | 150A | 150A | |
MAX AC Charge Current | 100A | 100A | 150A | 150A | |
MAX Charge Current | 120A | 120A | 150A | 150A | |
LCD | Can display operating mode/load/input/output | ||||
RS232 | 5PIN/Pitch2.54mm,Baud Rate 2400 | ||||
Expansion Slot Communication Interface | Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm | ||||
Parallel Interface | Not Support Parallel | ||||
Operating Temperature | 0℃~40℃ | ||||
Storage Temperature | -15℃~60℃ | ||||
Ork Altitude | No more than 1000m,If 1000m<Rate power will lower,MAX 4000m,Refer | ||||
Operating Environment Humidity | Non Condensing | ||||
Noise | <50dB | ||||
L*W*H(mm) | 495*312*125mm | ||||
